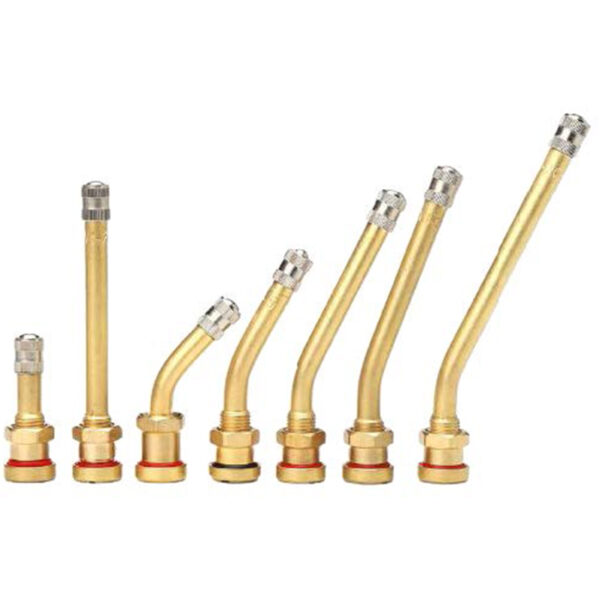

V3.20 series Brass tire valve for Bus
V3.20 series Brass tire valve for Bus
其他信息
| Code: | V3.20.1/V2.20.2/V3.20.3/V3.20.4/ |
|---|---|
| Tire Valve Bar | Brass material |
| Tire Valve Core | Brass/ Zinc alloy |
| Brass Valve Cap | Brass/Zinc Alloy |
| Rubber Color | Red, Black |
| Hub Hole Diameter | 9.7-10mm |
| Quality Control: | 100% Air Leakage test |
| Packing | 50pcs/bag; 10ags/ctn or customized |
| Payment term: | T/T; L/C at sight or negotiable |
Products details
| MODEL B | A(mm) | B(mm) | α (°) | β（°） |
| V3-20-1 | 36 | 一 | 一 | 一 |
| V3-20-2 | 30 | 60 | 17.5 | 一 |
| V3-20-3 | 82 | 一 | 一 | 一 |
| V3-20-4 | 25 | 60 | 27 | 一 |
| V3-20-5 | 25 | 40 | 27 | 一 |
| V3-20-6 | 25 | 85 | 27 | 一 |
| V3-20-7 | 25 | 50 | 27 | 一 |
| V3-20-8 | 29 | 85 | 12 | 一 |
| V3-20-9 | 45 | 52 | 12 | 一 |
| V3-20-10 | 50 | 25 | 28 | 一 |
| V3-20-11 | 25 | 一 | 27 | 42 |
| V3-20-12 | 25 | 70 | 27 | 一 |
| V3-22-1 | 25 | 28 | 45 | 一 |
